Dual View Baggage Scanner

The Dual View X-ray Baggage Scanner is equipped with two powerful X-ray generators, enabling simultaneous imaging from both horizontal and vertical angles. This advanced dual-view system provides a more complete and accurate inspection, minimizing the chances of missed detections caused by object overlap or concealment. By delivering clear images from multiple perspectives, it ensures higher efficiency and reliability in baggage screening for airports, customs, and other high-security checkpoints.

Dual Energy

Uses advanced dual-energy detection with an L-shaped detector line, making it easier to distinguish between different materials.

Dual Image

Generates two clear images of scanned items at the same time for better inspection.

Dual Vision

Provides both horizontal and vertical viewing angles to reduce blind spots caused by overlapping objects.

Easier Threat Detection

The dual-view X-ray baggage scanner displays 7-color images from two angles simultaneously, helping operators quickly spot contraband and potential threats.

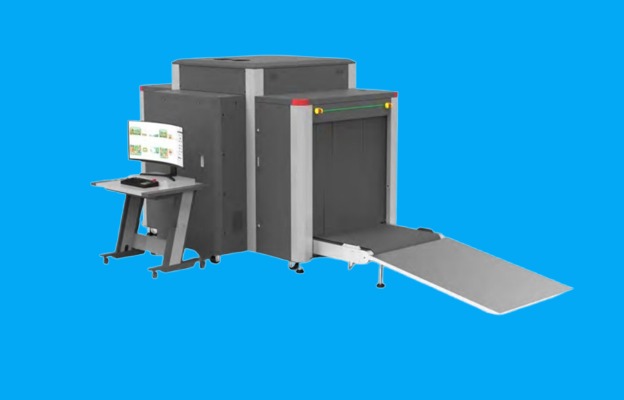

Cargo Scanner

HP-SE100100D

Tunnel Size: 1001(W) x1001(H)mm
Convery Max Load: 250kg
Dimensions: 3036(L) x1420(W)x 2015(H)mm

HP-SE150150D

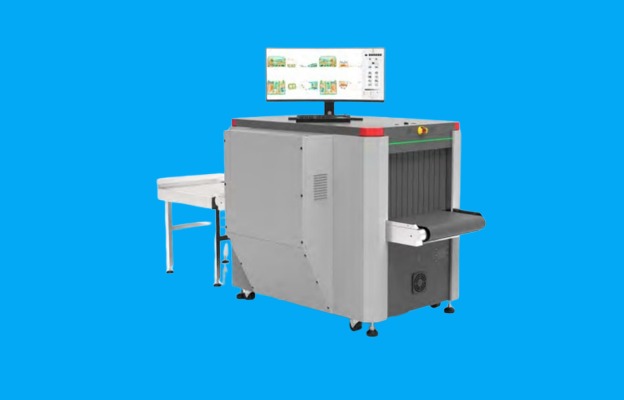

Bag Scanner

HP-SE6040D

Tunnel Size: 654(W) x 508(H)mm
Convery Max Load: 165kg
Dimensions: 1691(L) x 985(W) x 1275(H)mm

HP-SE7550D

Tunnel Size: 754(W) x 558(H)mm
Convery Max Load: 165kg
Dimensions: 2590(L) x 1450(W) x1512(H)mm
