Under Vehicle Inspection System
The advanced vehicle screening system is designed for comprehensive inspection of vehicles, helping operators quickly and effectively check for hidden threats. With its specialized technology, it allows for clear and accurate screening of the vehicle’s underside, where dangerous items or contraband may be concealed.
Models & specifications

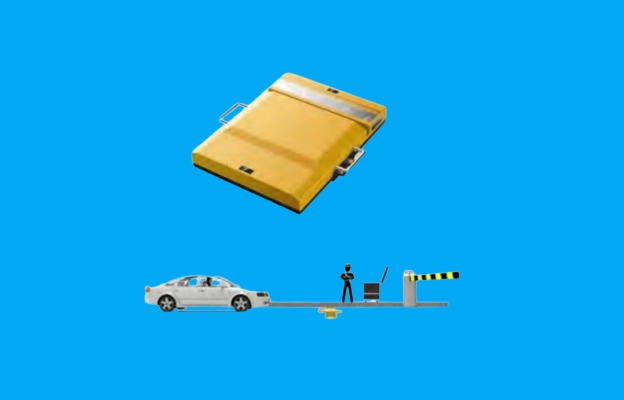

SE-UVIS100
Type: Mobile
Field of View. 170° (CCD line camera)
Water-Proof Grade: IP66
Resolution: 2048 pixel
Maximum scan rate: 18kHz
Vehicle Speed: 180km/h (advise 50km/h)
Installation Area: About 490 x 390 x 85mm

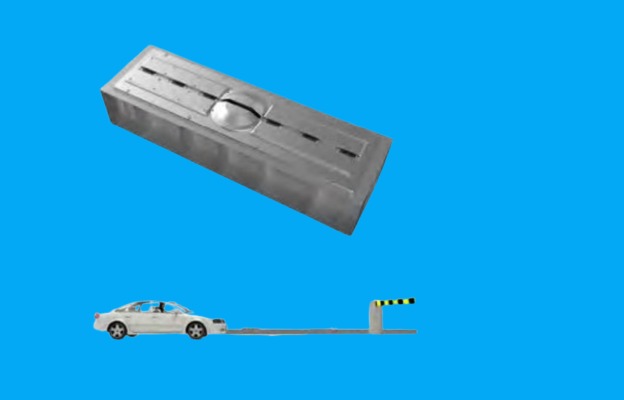

SE-UVIS200
Type: Fixed Field of View: 180 (CCD line camera)
Water-Proof Grade: IP68
Resolution: 2048 pixels
Maximum scan rate: 18kHz
Vehicle Speed: 1-80km/h (advise 50km/h)
Installation Area: About 1200 x 322 x 290mm
